Are you facing an issue with your Samsung Galaxy S24 Ultra Charging? A couple of things may be causing your Samsung Galaxy S24 Ultra not to charge. But if you have tried all those fixes you may need a charging port repair for your Samsung Galaxy S24 Ultra.
Yes this step-by-step guide will show you how to repair the charging port on your Samsung Galaxy S24 Ultra. Well this is a DIY act and we will make the entire process very easy by illustrating every step. So without passing any moment let’s start Charging Port Repair for Samsung Galaxy S24 Ultra.
Step #1. Gathering Tools For Repairing Samsung Galaxy S24 Ultra Charging Port
Well the Samsung Galaxy S24 Ultra charging port repair/replacement is very easy and does not require many tools. However gathering the necessary tools before starting the repair is quite important. So here is a list of tools you will need for your Samsung Galaxy S24 Ultra charging port repair/replacement.
*You need the original Samsung Galaxy S24 Utra Charging Port Repair part. Please check your phone’s model number and buy it accordingly.
*Small Phillips Screwdriver to unfasten the tiny screws
*Plastic prying tool
*Suction tool
*Heat gun or a hair dryer
*Isopropyl Alcohol is used to remove the old adhesive and back plate.
*Pre-cut adhesive or glue is needed to reinstall the back plate.

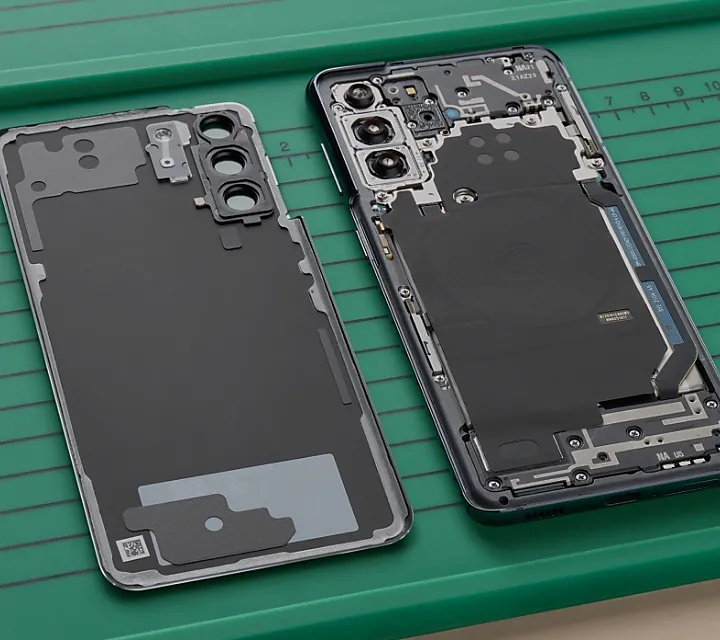

Step #2. Preparing Repairing Place For Samsung Galaxy S24 Ultra Charging Port
The second most crucial step in repairing or replacing the charging port is finding the right place. The area for the Samsung Galaxy S24 Ultra Charging Port Replacement should be like this.
*Clean Surface: Make sure your table or desk is clean. This keeps dust away and allows you to work without disturbances.
*Good Lighting: Bright lighting is important. It helps you see everything clearly, especially those tiny screws and parts.
*No Distractions: Find a quiet spot. This way, you can focus on your work without getting interrupted.
*Comfortable Seating: Use a chair that supports your back well. Comfortable seating is crucial for longer work sessions.
*Proper ventilation: Ensure the room has good airflow, especially when using adhesive. This keeps the air fresh and safe.
*Organized Tools: Keep your tools within easy reach. Having everything nearby makes your work smoother and more efficient.
Step #3. Take Out The SIM Card Tray
Now from here you start working on the Mobile set for repairing the charging port.
*The first thing you need to do is remove the SIM card tray which is located at the bottom of the Samsung Galaxy S24 Utra.
*Please insert the SIM card ejector.
*When it pops out you can easily pull it out with your fingers.
Step #4. Give Heat To The Back Plate
*It’s time to give heat to the back plate to remove it easily.
*Please apply the heat evenly to all the edges.
*Keep checking the heat with your fingers.
*Don’t give excessive heat. Otherwise it will cause further damage to the internal parts.
Step #5. Apply A Suction Tool At the Bottom of the Samsung Galaxy S24 Ultra’s Back Plate
After heating your Galaxy S24 Ultra to melt the adhesive you need to apply the suction tool to create a gap.
*Apply the suction tool/cup at the bottom of the Samsung Galaxy S24 Ultra.
*Pull it up with some force and create a line gap.
Step #6. Insert An Opening Pick
*Pick an opening pick and insert it into the created gap.
*Fortunately the Samsung Galaxy S24 Ultra does not have tiny hooks and components that could be damaged when inserting the opening pick too far.
*But still carefully insert the opening pick and move all around the edges of the Galaxy Phone. It will cut the adhesive.
*If you feel the back plate is extremely sticky and it is difficult to cut the adhesive, you can apply a few drops of Isopropyl Alcohol with the opening pick.
Step #7. Remove The Back Plate
*Now you can easily pry the back plate off because its adhesive has cuted from every edge.
*Put it safely aside.
Step #8. Unfasten The 10 Screws For Removing The Wireless Charging Coil and Speaker Assembly
*Now you can see ten marked screws that are securing the wireless charging coil, NFC antenna and speaker assembly.
*But before this you need to disconnect the wireless charging coil connection from the main board.
*Pry it up with the help of a spudger or an opening tool.
Step #9. Remove Charging Coil And NFC Antenna
*When you have done with unfastening all the required screws you can remove the charging coil and NFC antenna.
*Now lift the NFC antenna and charging and peel it off from where they are stuck.
*Keep it safely aside to reinstall it while reassembling.
Step #10. Disconnect The Battery Cable
*At this point you need to disconnect the battery cable from the main board.
*Pry it up using a spudger and with some pressure it will get disconnected.
*Battery disconnection will save your phone from accidental burn.
Step #11. Remove The Bottom Speaker’s Assembly
*Now it’s time to remove the speaker’s assembly.
*Pry the speaker’s assembly using an opening tool or a spudger.
*Hold it with your fingers and remove it from the phone.
Step #12. Disconnect The Two Flex Cable Connecting The Subboard
*At this stage you need to disconnect the two flex cables covering the subboard.
*Pick a suitable spudger and pry it up the flex cable.
Step #13. Unfasten The Three Screws From The Subboard
*Using a Phillips screws driver open the screws securing the subboard of the Samsung Galaxy S24 Ultra.
Step #14. Take Out The Subboard
*It’s time to take out the subboard.
*The charging port flex is attached to the subboard.
*Pry it up with a spudger.
*Hold it with your hand and take it out carefully.
*When the charging port doesn’t work you need to replace it with the same, original new subboard with charging flex.
Step #15. Install New Subboard (Charging Port Flex)
*Now you are on the stage where you will install the new subboard that also charges port flex.
*Make sure to bring the original replacement part otherwise you may have to face complications.
*Now carefully settle down the subboard.
*Adjust the charging port to its place.
*With your fingers you can feel the correct adjustment of the subboard.
Step #16. Connect the Flex Cables
*It is time to reconnect the flex cables to the subboard
*Do this act with your fingers feel the snug fit and hear the sound.
Step #17. Fasten Subbaord’s Three Screws
*Secure the charging port flex (subboard) with the screws.
*There were three screws that you needed to fasten.
Step #18. Reinstall The Bottom Speaker’s Assembly
*After making sure that all the screws on the subboard are in their place you can move to reinstall the Bottom Speaker’s assembly.
*It is very easy to set the bottom speaker’s assembly in its place.
*But please recheck the flex cables to ensure that all are correctly connected.
Step #19. Reconnect the Battery to the Main Board
*At this stage you should reconnect the battery to the main board.
*That is how you keep your Samsung Galaxy S4 Ultra safe from potential damage.
*Another important action is to check all the flex cables are connected correctly to the main board. It will avoid further hassle.
Step #20. Reinstall the Charging Foil And NFC Antenna
*Now it’s charging foil’s turn to reinstall.
*Place it correctly on the set and press with your finger at the sticking area.
*Make sure it has stuck perfectly then connect its cable to the main board
Step #21. Fasten All Ten Screws Back in Place
*This is the time to secure all ten screws back in place.
Step #22. Remove Old Adhesive From The Back Plate
*If you feel the old adhesive is still there on the phone’s edges or the back plate you need to clear it completely.
*Otherwise when you apply the new adhesive strip or glue it will make the edges uneven.
Step #23. Apply New Glue Or Pre Cut Adhesive
*In this guide we use B7000 glue to reinstall the backplate.
*If you want to use Pre-cut Adhesive for the Samsung Galaxy S24 Ultra, you can see the guidelines from here. (It’s the Samsung Galaxy S24 Ultra Screen Replacement Step-By-Step guide.) Step #20 will guide you through reinstalling the pre-cut adhesive on the Samsung Galaxy S24Uultra’s backplate.
*However the B7000 glue was applied to the backplate of the Samsung Galaxy S24 Utra.
Step #24. Reinstall the Backplate On the Device
*After applying glue to the silver-clear edges you can reinstall the back cover on the Samsung Galaxy S24 Utra.
*Press all the eggs gently with your fingers and hand.
*Wait for a while so that the adhesive can dry.
Step #25. Reinsert the SIM Card Tray
*Now you can reinsert the SIM card tray back in its place.
Congratulations!
Great job! You are done with the charging port repair for the Samsung Galaxy S24 Ultra. Now turn your phone on and check the charging port to see if it’s charging.
We hope that this step-by-step guide for Samsung Galaxy S24 Ultra Charging Port Replacement has helped you in every way. We make sure to guide you through every precaution and safety step. Still if you have any questions about your precious S24 Ultra, feel free to ask us. It’s up for this guide. See you in the next one.
